AC3M0021120Ki


收藏:0
Detail
Applications
Download
Replace

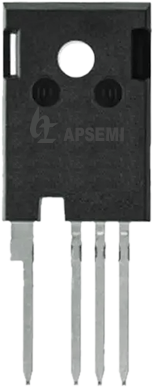

Model AC3M0021120Ki Description SiC MOS (Silicon Carbide)AC3M0021120Ki 1200V 104A
FET Type N-Channel Series Silicon Carbide
DrainVoltage(Vdss) 1200V Current 104A
Drive Voltage 15V Vgs (Max) +19V, -8V
Rds On 21mΩ Vgs(th) 3.8V
Gate Charge (Qg) 177 nC Input Capacitance (Ciss) 5100 pF
Power Dissipation 405W Operating Temperature -55°C ~ 175°C
Mounting Type Through Hole Package TO-247-4L
